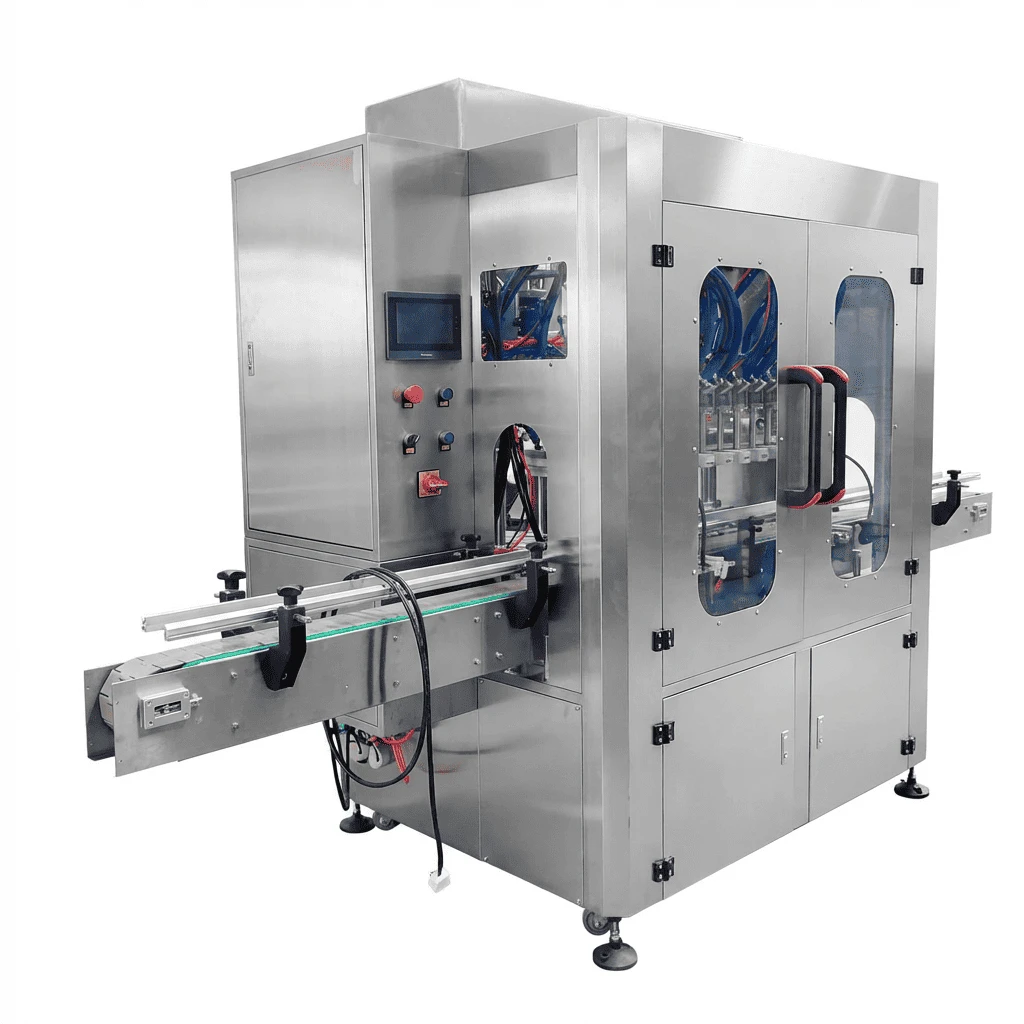

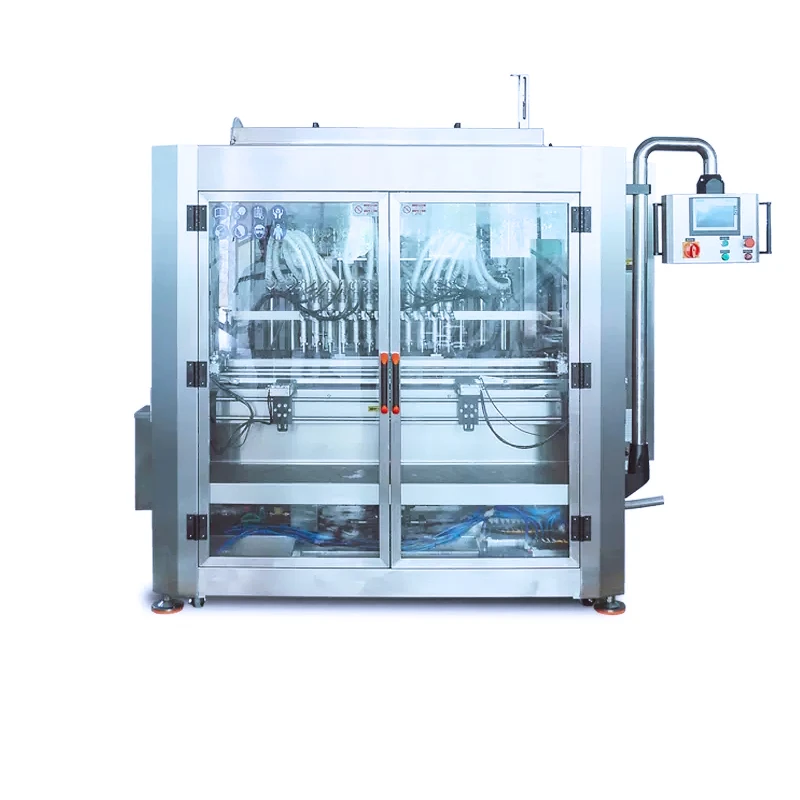

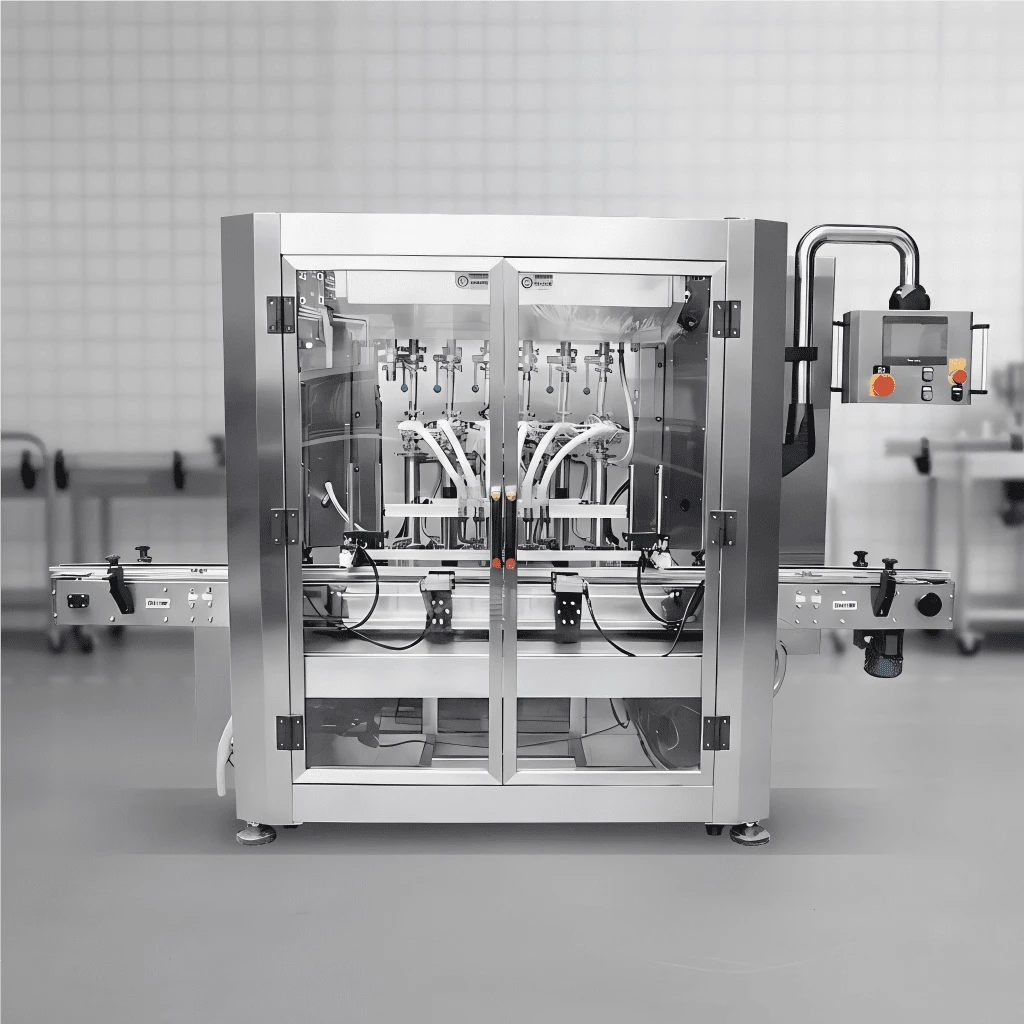

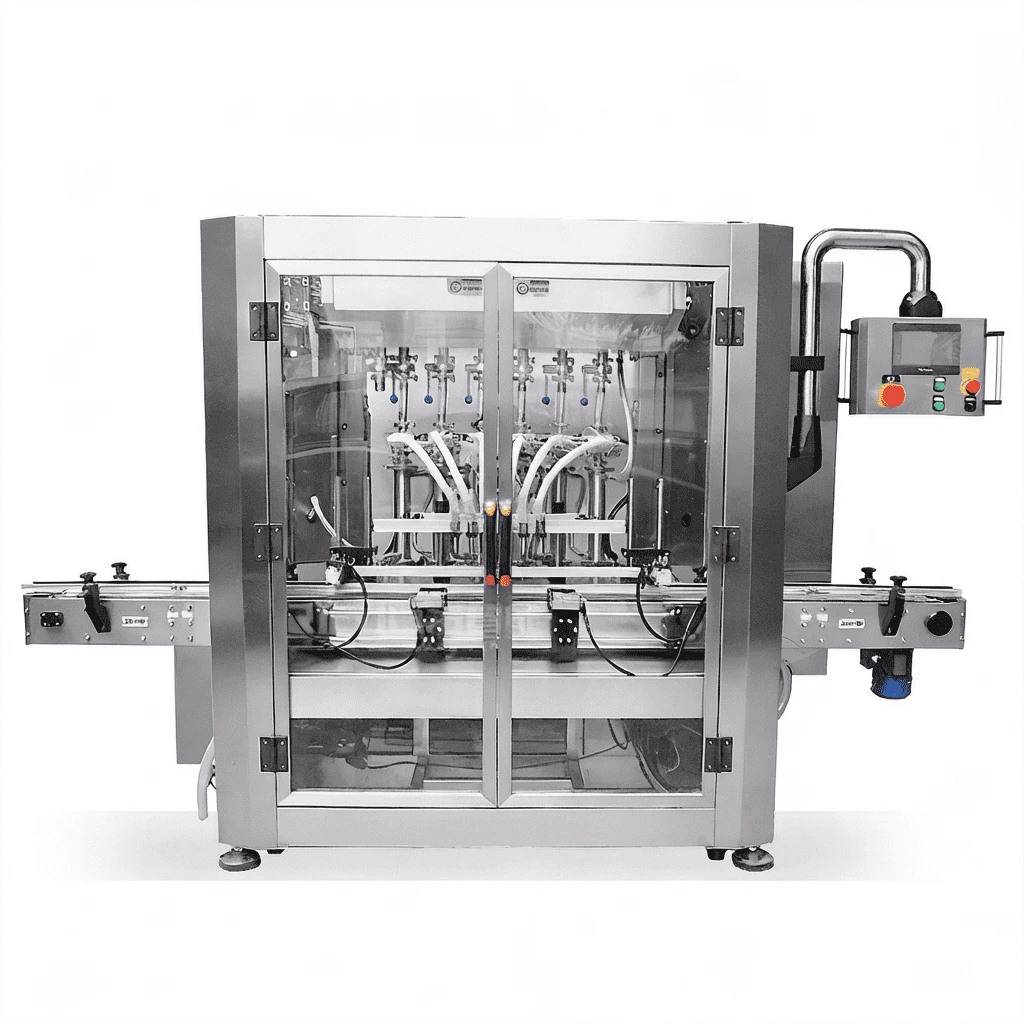

Piston Hom Kua Filling Tshuab - Muaj tseeb & Ntau yam
Peb piston filling tshuab yog tsim los rau precision thiab versatility. Featuring raug ntsuas qhov tseeb, drip{1}} qauv tsim, thiab "tsis muaj lub raj mis, tsis muaj filling", nws txhawb ntau yam kua xws li pastes, sauces, thiab viscos products. Kev xaiv cua sov thiab nplawm ua haujlwm kom du, cua sov- rhiab txhaws. Qhov zoo tshaj plaws rau cov kab ntim khoom customizable haum rau koj cov kev xav tau ntau lawm.
Hauj lwm lawm
Khoom Description
Piston Hom Kua Filling Tshuab - Muaj tseeb & Ntau yam
Peb piston filling tshuab yog tsim los rau precision thiab versatility. Featuring raug ntsuas qhov tseeb, drip{1}} qauv tsim, thiab "tsis muaj lub raj mis, tsis muaj filling", nws txhawb ntau yam kua xws li pastes, sauces, thiab viscos products. Kev xaiv cua sov thiab nplawm ua haujlwm kom du, cua sov- rhiab txhaws. Qhov zoo tshaj plaws rau cov kab ntim khoom customizable haum rau koj cov kev xav tau ntau lawm.
Cov khoom parame
Parameters ntawm CRA Series Piston Filling Tshuab
Ib tug ntau yam piston filling tov muaj nyob rau hauv 6, 8, thiab 12- lub taub hau configurations. Tsim los rau qhov tseeb, drip-dawb puv ntawm qis- rau cov kua dej siab, nrog rau kev xaiv cua sov thiab nplawm ua haujlwm rau kev ua haujlwm du. Zoo tagnrho rau cov kua ntses, pastes, thiab lwm yam khoom khov hauv cov kab ntau lawm.
| cov khoom |
 |
 |
 |
| Qauv nab npawb | RT-GSF-6 | RT-GSF-8 | RT-GSF-12 |
| Filling ntau yam | 100-1000ml, 500-5000ml | ||
| Filling ceev (lub raj mis / teev) | 1440-1800 | 1920-2400 | 2880-3600 |
| Metrology raug | 1% (Qhov tseeb txawv ntawm qhov muaj peev xwm) | ||
| Rated zog / voltage | 1.75KW / 220V TSI | 2.1KW / 220V TSI | 2.8KW / 220V TSI |
| Ua haujlwm cua siab | 0.6-0.8MPA | ||
| Silo ntim | 120L | 200L | 200L |
| Kev siv cua | 6-7KG / cm2 | ||
| Tshuab hnyav | 450 KG | 500 KG | 600 KG |
| Tshuab loj (mm) | 2000*1300*2100 | 2000*1300*2100 | 2000*1400*2100 |
| Tau tshaj qhov siab ntawm lub raj mis hom | 80-180mm (tuaj yeem ua raws li cov neeg siv khoom xav tau) | ||
| Tau tshaj lub raj mis dav lossis txoj kab uas hla | 60-100mm (tuaj yeem ua raws li cov neeg siv khoom xav tau) | ||
Cov khoom siv
daim ntawv thov
Lub piston filling tshuab yog dav siv nyob rau hauv kev lag luam uas yuav tsum tau meej thiab ntau yam kua filling:
Kev lag luam zaub mov
ntses, pastes, jams,
zib mu, condiments,
syrups
Kev lag luam dej haus
kua txiv, yogurt,
concentrated dej qab zib
Tshuaj pleev ib ce & Kev kho tus kheej
cream, pleev,
gels, tshuaj zawv plaub hau
Pharmaceuticals
syrup, tshuaj pleev,
viscous medicinal kua
Kev lag luam tshuaj
adhesives, lubricants,
tshuaj ntxuav tes,
lwm yam tshuaj viscous
Hom Lub raj mis haum
Round Fwj:txheem, dav-caj dab, nqaim-caj dab
Square & Rectangular Fwj:ntim cov tshuaj pleev ib ce, tshuaj fwj
Cov duab tshwj xeeb:oval, kev cai- tsim lub raj mis (yuav tsum tau kho)
Cov ntaub ntawv txhawb nqa:iav, PET, HDPE, PP

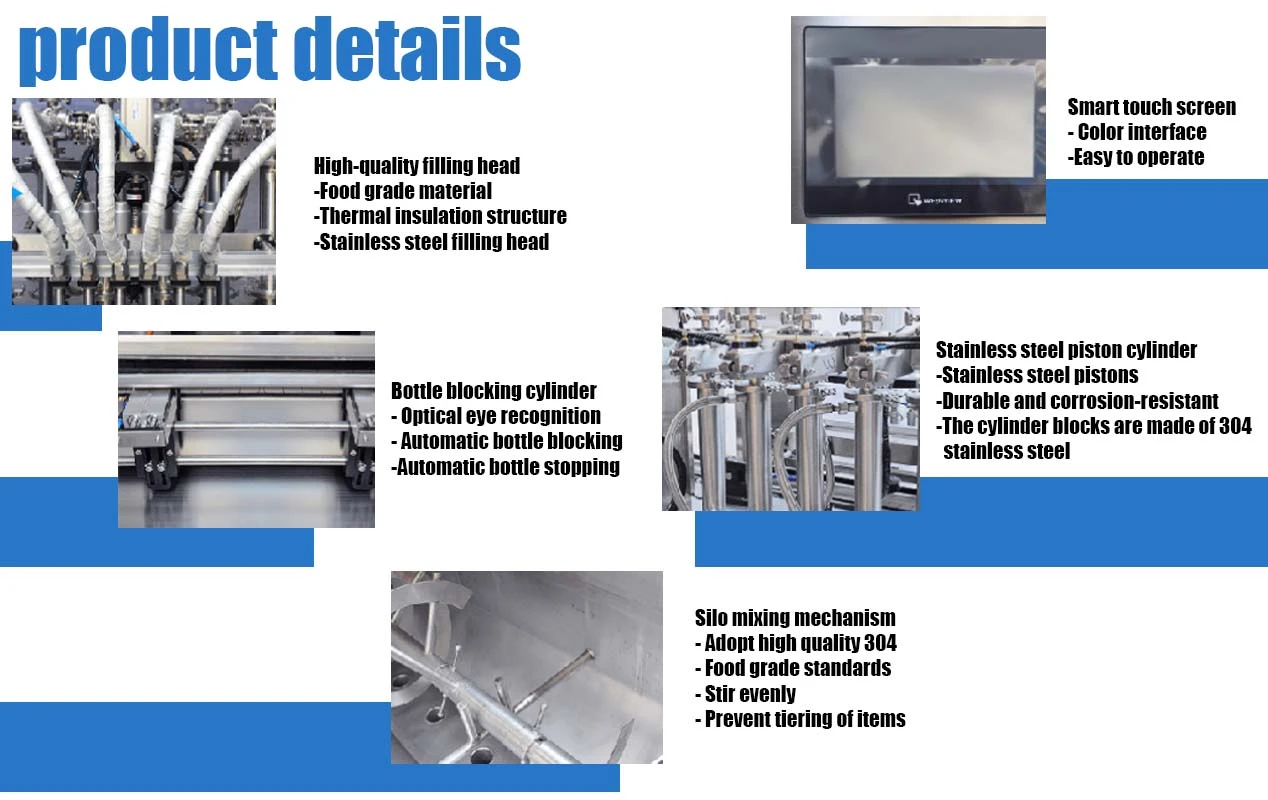

Cov Khoom Paub meej
ua faq
Q: 1.Yuav ua li cas hom kua CRA piston filling tshuab kov?
A: Nws tsim nyog rau qis - mus rau siab - kua viscosity, nrog rau cov kua ntses, pastes, cream, thiab lwm yam khoom khov.
Q: 2.Kuv puas tuaj yeem xaiv qhov sib txawv filling taub hau teeb tsa?
A: Yog lawm, CRA series yog muaj nrog 6, 8, lossis 12 lub taub hau kom tau raws li qhov sib txawv ntawm cov peev txheej.
Q: 3.Lub tshuab puas txhawb kev sau kom raug?
A: Yog lawm, piston metering system ua kom meej meej, zoo ib yam rau txhua lub raj mis.
Q: 4.Puas muaj kev nyab xeeb los tiv thaiv kev nchuav?
A: Yog lawm, lub tshuab nta lub drip- pov thawj tsim thiab "tsis muaj lub raj mis, tsis muaj filling" muaj nuj nqi.
Q: 5.Lub tshuab puas tuaj yeem tuav cov cua sov- cov kua nplaum los yog kua nplaum?
A: Yog lawm, kev xaiv cua sov thiab nplawm ua haujlwm tso cai rau kev ua haujlwm zoo ntawm cov cua sov- cov kua dej rhiab thiab khov.
Q: 6.CRA series puas tuaj yeem muab tso rau hauv cov kab ntau lawm?
A: Yog lawm. Lub tshuab yog tsim los rau versatility thiab tuaj yeem yog ib feem ntawm cov kab ntim khoom customizable.
Nrhiav los kho cov kab ntau lawm lossis tau txais cov lus hais?
