Dab tsi yog Rotary Desktop Stand-Up Hnab Sau thiab Capping Tshuab, thiab Nws Ua Haujlwm Li Cas?
Daim ntawv qhia ua kom tiav rau me me mus rau nruab nrab -Sized Packing Operations
Cov Lus Qhia
Dab tsi yog Rotary Desktop Stand-Up Hnab Sau thiab Capping Tshuab?
Rotary Desktop Stand-Up hnab ntim thiab Capping tshuab ua haujlwm li cas?
Cov Cheebtsam tseem ceeb ntawm Stand-Up Hnab Sau thiab Capping System
Dab tsi yog Hom Kev Ua Haujlwm thiab Muaj Peev Xwm?
Qhov zoo tshaj plaws ntawm cov cuab yeej no
Cov kev lag luam twg tuaj yeem tau txais txiaj ntsig los ntawm cov cuab yeej no?
Vim li cas thiaj xaiv Guangzhou RITO rau Koj Lub Hnab Rotary Capping System?
Dab tsi yog Cov Lus Qhia Tshwj Xeeb ntawm LGD02 Model?
Yuav ua li cas Maximize Efficiency thiab Precision nrog lub tshuab no
Dab tsi yog Rotary Desktop Stand-Up Hnab Sau thiab Capping Tshuab?
Rotary Desktop Stand-Up Pouch Filling thiab Capping Tshuab yog lub compact, muaj txiaj ntsig thiab cov neeg siv khoom- cov khoom ntim khoom zoo uas sib txuas ua haujlwm ntau hauv ib chav tsev: lub hnab ntim khoom, ntim khoom, ntim khoom, thiab lub hnab ntim tsis siv neeg. Nws yog qhov tsim nyog rau me me mus rau nruab nrab- qhov loj me ntawm kev tsim khoom, qhov twg phau ntawv thiab ib nrab- cov kev daws teeb meem tsis siv neeg, tab sis kev sib koom ua ke, kev siv tshuab ua haujlwm yog ob qho tib si tus nqi- siv tau thiab siv tau.
Qhov no yog tshwj xeeb tshaj yog nrov nyob rau hauv tshuaj pleev ib ce, zaub mov thiab dej haus, kws, thiab tshuaj industries vim nws high precision, versatility, thiab yooj yim ntawm kev siv.
Rotary Desktop Stand-Up hnab ntim thiab Capping tshuab ua haujlwm li cas?
Rotary Desktop Stand-Up Pouch Filling thiab Capping Tshuab ua haujlwm los ntawm cov txheej txheem ncaj nraim thiab kev sib koom ua ke, ua rau nws zoo tagnrho rau kev tu cev, khoom siv- nyab xeeb, thiab siab - ntim khoom.
Kauj Ruam -los ntawm - Kauj Ruam Ua Haujlwm
Lub hnab ntim khoom
Lub hnab yog manually positioned los ntawm tus neeg teb xov tooj ntawm lub chaw nres tsheb pem hauv ntej.
Hnab Gripping
Thaum thauj khoom, lub hnab ntim tau ruaj ntseg los tiv thaiv kev hloov pauv lossis kis kab mob thaum lub sijhawm sau cov txheej txheem.
Cov txheej txheem sau
Lub kaw lus siv lub servo-raws li lub twj tso kua mis sib nqus kom xa qhov tseeb thiab zoo ib yam rau ntau hom khoom xws li hmoov, kua, semi- kua thiab gel.
Qee cov qauv kuj tseem tuaj yeem siv cov tshuab nqus tsev rau cov khoom muag muag.
Filling raug yog ± 0.5%, thiab lub tshuab tuaj yeem tuav cov khoom hnyav ntawm 50g txog 3000g.
Cap Qhov Chaw
Muaj ob txoj hauv kev pub mis:
Tsis Siv Neeg Cap Pub (siv profilers lossis vibration disk systems)
Kev Taw Qhia Cap Daim Ntawv Thov (zoo tagnrho rau qis- ntim lossis cov khoom me me)
Tom qab tso lub hau, lub servo claw -style capping system siv qhov xav tau torque kom ruaj lub hau kom nruj.
Hnab tshem tawm thiab stacking
Lub hnab ntim puv yog ces tig thiab txiav tawm mus rau qhov chaw nres tsheb outbag.
Ib qho kev xaiv stacker lossis conveyor system ua kom muaj txiaj ntsig, kev txiav txim siab, thiab kev sib koom ua ke hauv cov zis.

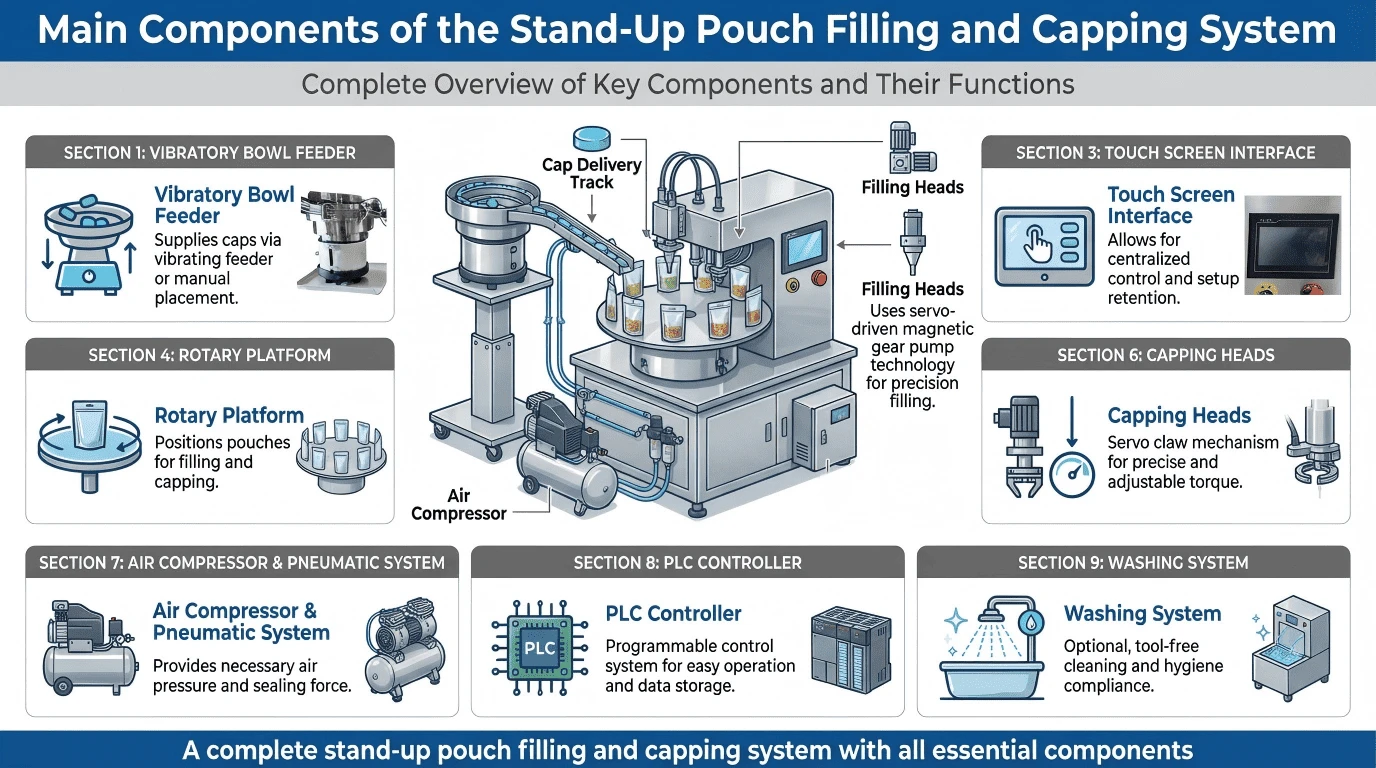

Cov Cheebtsam tseem ceeb ntawm Stand-Up Hnab Sau thiab Capping System
| Cheebtsam | Muaj nuj nqi |
|---|---|
| Hnab Magazine | Tuav thiab pub cov hnab preformed rau lub tshuab |
| Gripping System | Ruaj lub hnab rau kev hloov mus zoo |
| Lub taub hau filling | Siv servo-tsav magnetic iav twj tso kua mis tshuab rau precision filling |
| Cap Feeding System | Cov khoom siv cap ntawm vibrating feeder lossis phau ntawv tso |
| Capping taub hau | Servo claw mechanism rau meej thiab adjustable torque |
| Qhov hluav taws xob Conveyor | Automated lub hnab tshem tawm thiab stacking |
| PLC tswj | Programmable tswj system rau kev ua haujlwm yooj yim thiab khaws cov ntaub ntawv |
| Kov Screen Interface | Tso cai rau centralized tswj thiab teeb tsa tuav |
| Cua Compressor & Pneumatic System | Muab qhov tsim nyog cua siab thiab sealing quab yuam |
| Ntxuav System | Kev xaiv, cuab yeej - ntxuav dawb thiab ua raws li kev nyiam huv |
Dab tsi yog Hom Kev Ua Haujlwm thiab Muaj Peev Xwm?
Nyob ntawm qhov ntsuas thiab qhov xav tau ntawm cov kab ntau lawm, Rotary Desktop Stand-Up Pouch Filling thiab Capping Tshuab muaj cov kev xaiv hloov tau yooj yim.
| Ua hauj lwm hom | Peev xwm (g) | Ceev (bags / feeb) |
|---|---|---|
| Kev tuav lub hnab ntim khoom | 50–3000 | 15–35 |
| Semi-Automatic | 50–3000 | 15–35 |
| Tsis siv neeg puv | 50–3000 | 15-35 (kho tau los ntawm cov khoom) |
Piv txwv speeds raws li muaj peev xwm:
2000g: ~ 15-18 hnab ib feeb
1000g: ~ 20-25 hnab ib feeb
450g: ~ 30 hnab ib feeb

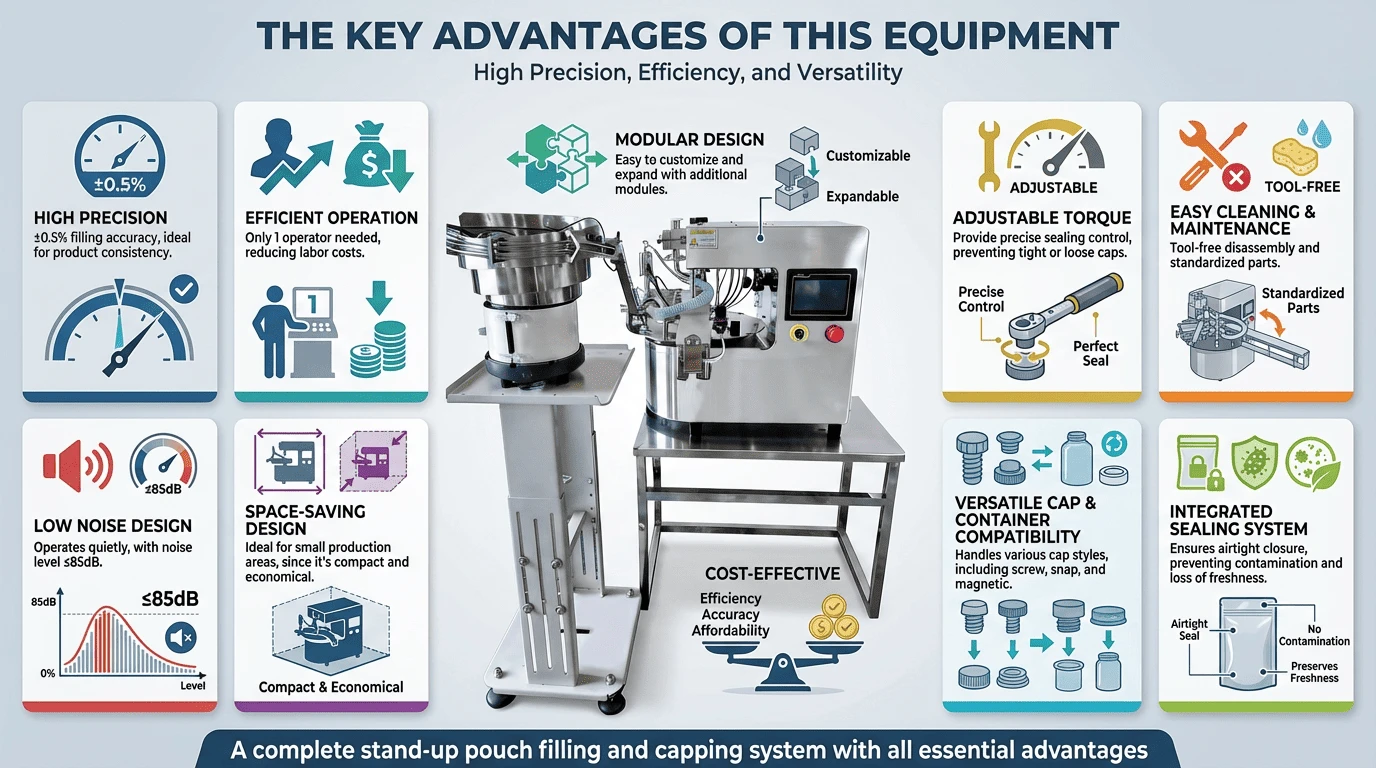

Qhov zoo tshaj plaws ntawm cov cuab yeej no
| Qhov zoo | Kev piav qhia |
|---|---|
| Siab Precision | ± 0.5% sau qhov tseeb, zoo tagnrho rau cov khoom sib xws |
| Kev ua haujlwm zoo | Tsuas yog 1 tus neeg teb xov tooj xav tau, txo cov nqi zog |
| Modular Tsim | Yooj yim rau customize thiab nthuav nrog ntxiv modules |
| Adjustable Torque | Muab kev tswj xyuas qhov sib khi, tiv thaiv kom nruj los yog xoob lub kaus mom |
| Yooj yim ntxuav & tu | Cov cuab yeej -dawb disassembly thiab standardized qhov chaw |
| Tsawg suab nrov tsim | Ua haujlwm ntsiag to, nrog suab nrov tsawg dua lossis sib npaug li 85dB |
| Qhov chaw -Txuag Tsim | Qhov zoo tshaj plaws rau cov chaw tsim khoom me me, vim nws yog compact thiab pheej yig |
| Tus nqi -Cov | Sib npaug efficiency, raug, thiab pheej yig nyob rau hauv ib lub tshuab |
| Versatile Cap & Container Compatibility | Kov ntau hom hau, nrog rau cov ntsia hlau, snap, thiab sib nqus |
| Integrated Sealing System | Xyuas kom airtight kaw, tiv thaiv kev kis kab mob thiab poob ntawm freshness |
Cov kev lag luam twg tuaj yeem tau txais txiaj ntsig los ntawm cov cuab yeej no?
Rotary Desktop Stand-Up Pouch Filling thiab Capping Tshuab yog qhov haum rau cov ntawv ntim hauv qab no:
| Kev lag luam | Yam khoom | Vim li cas thiaj haum |
|---|---|---|
| Tshuaj pleev ib ce | Tshuaj zawv plaub hau, tshuaj tsw qab, tshuaj pleev ib ce | Haum rau cov kua thiab semi{0}} cov khoom ua kua |
| Khoom noj khoom haus thiab dej haus | Jelly, yogurt, kua xab npum, syrup | Ua kom cov khoom muaj kev nyab xeeb, tshiab, thiab tu cev |
| Tshuaj | Kua ntsiav tshuaj, syrups, sterile khoom | Pab kom ua tau raws li GMP cov qauv thiab kev nyiam huv |
| Cov tshuaj hauv tsev | Npuag softener, ntxhua khaub ncaws ntxhua khaub ncaws, kua ntxhua khaub ncaws | Ua kom muaj kev ruaj ntseg sealing thiab ntim zoo |
| Kev Kho Tus Kheej & Kev Noj Qab Haus Huv | Cov khoom siv tawv nqaij, daim npog ntsej muag | High efficiency thiab tsis tshua muaj txij nkawm |
Vim li cas thiaj xaiv Guangzhou RITO rau Koj Lub Hnab Rotary Capping System?
Ntawm Guangzhou RITO Ntim Machinery Co., Ltd., peb muab siab - zoo, siab -precision, thiab tshuab- cov kev daws teeb meem zoo tsim rau me me rau nruab nrab - cov kab ntim khoom loj.
Tau ntau tshaj 10 xyoo, peb tau tsom mus rau kev tsim kho tshiab muaj zog, cov neeg siv khoom- kev txhawb nqa centric, thiab cov qauv tsim los xyuas kom meej tias koj cov txheej txheem ntim khoom yog qhov tseeb, ua tau zoo, thiab hloov tau.
Vim Li Cas Peb Cov Tshuab Sawv Tawm
Pab pawg kws tshaj lij Engineering
Ntau tshaj 20 xyoo kev paub hauv ntim tshuab R & D, suav nrog software, tshuab, thiab tswj engineers.
High Degree ntawm Customization
Peb muab cov khoom sawv ntsug-up hnab ntim tshuab rau rouge, kua, hmoov, thiab ib nrab-kua khoom, nrog rau ntau hom hau.
Kev cog lus rau kev ua tau zoo
Peb cov cav tov tau tsim nrog 304 stainless hlau, POM, PTFE, thiab lwm yam qib siab - cov ntaub ntawv, ua kom muaj kev nyab xeeb, kav ntev, thiab ua haujlwm zoo.
Ntiaj teb no Muag & Kev Pabcuam Network
Peb tau ua lag luam peb lub tshuab ntim khoom rau ntau tshaj 40 lub teb chaws, suav nrog Tuam Tshoj, Tebchaws Asmeskas, Lub Tebchaws Yelemees, Nyab Laj, thiab ntau ntxiv, nrog rau sab saum toj -tier tom qab- kev muag khoom.
Tus neeg muab khoom- Qib Cheebtsam
Peb siv cov khoom muaj npe, muaj ntawv pov thawj xws li Kunlun Touch Screen, Jie De Cua Cheebtsam, thiab Diweisun Servo Tsav, kom ntseeg tau thiab ua haujlwm tau zoo.
Dab tsi yog Cov Lus Qhia Tshwj Xeeb ntawm LGD02 Model?
| Parameter | Specification |
|---|---|
| Qauv | LGD02 |
| Qhov ntev | 0.8m × 0.9m × 0.7m |
| Qhov hnyav | ~ 65 kg |
| Qhov hluav taws xob | 220V / 50Hz |
| Hwj chim | 2 kWm |
| Cua Siab | 0.5-0.8MPa |
| Kev siv cua | ~ 0.5 m³ / min |
| Filling Qhov tseeb | ±0.5% |
| Ceev | 15-35 hnab / feeb (nyob ntawm cov khoom hnyav) |
| Kev hloov Torque | Customizable kom tau raws li kev lag luam- cov qauv tshwj xeeb |
| Khoom siv | 304, POM, PE, PTFE, thiab lwm yam. |
| Lub suab nrov | Tsawg dua lossis sib npaug li 85 dB |
Yuav ua li cas Maximize Efficiency thiab Precision nrog lub tshuab no
Ua haujlwm siab
Lub tshuab ua haujlwm ntawm 15-35 hnab ib feeb, thiab yooj yim yoog raws cov khoom ntim sib txawv thiab cov qauv hau.
Modular Flexibility
Txawm hais tias koj xav tau phau ntawv los yog tag nrho cov tshuab tsis siv neeg, peb muaj cov kev xaiv uas haum rau koj cov peev nyiaj, ntau lawm ceev, thiab hom khoom.
Kev teeb tsa yooj yim thiab hloov pauv
Peb cov tshuab yog cov ntaub ntawv -tus phooj ywg, lub ntsiab lus thaum koj teeb tsa cov kev txwv, koj tuaj yeem rov qab tau lawv rau kev khiav haujlwm yav tom ntej yam tsis muaj reprogramming.
Robust thiab Durable
Tsim los nrog siab - cov khoom zoo thiab cov qauv tsim qauv, kom ntseeg tau tias siv sijhawm ntev - thiab qis qis qis.
Kev tu qis & Kev huv huv
Txhua qhov chaw yog yooj yim rau disassemble, thiab customizable xaiv xws li ntxuav tshuab kom huv si ua raws li.
Xaus
Rotary Desktop Stand-Up Pouch Filling thiab Capping Tshuab yog qhov kev daws teeb meem zoo tshaj plaws rau cov khoom me me thiab nruab nrab- cov kab ntim loj uas xav tau qhov tseeb, ceev, thiab siv tau yooj yim.
Nrog nws cov kev ua haujlwm siab, hloov tau lub zog, thiab kev tsim kho kom haum, nws yog tus nqi - siv tau zoo thiab cov neeg siv khoom - tus phooj ywg kev daws teeb meem rau tshuaj pleev ib ce, khoom noj khoom haus, tshuaj, thiab tshuaj lag luam.
Ntawm Guangzhou RITO, peb tau cog lus los pab koj ua tiav cov txiaj ntsig zoo nrog peb lub siab -cov hnab ntim khoom zoo.
